Description

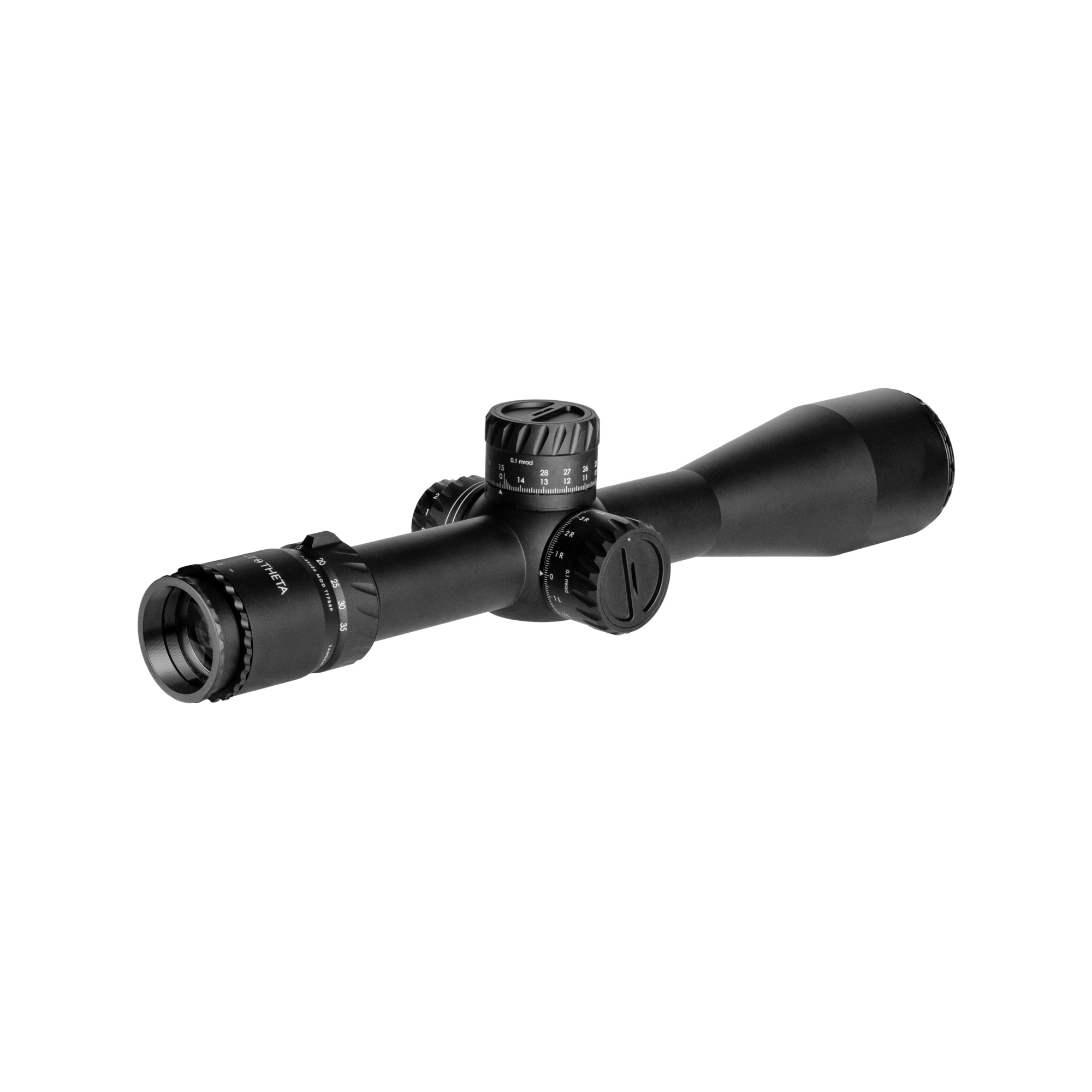

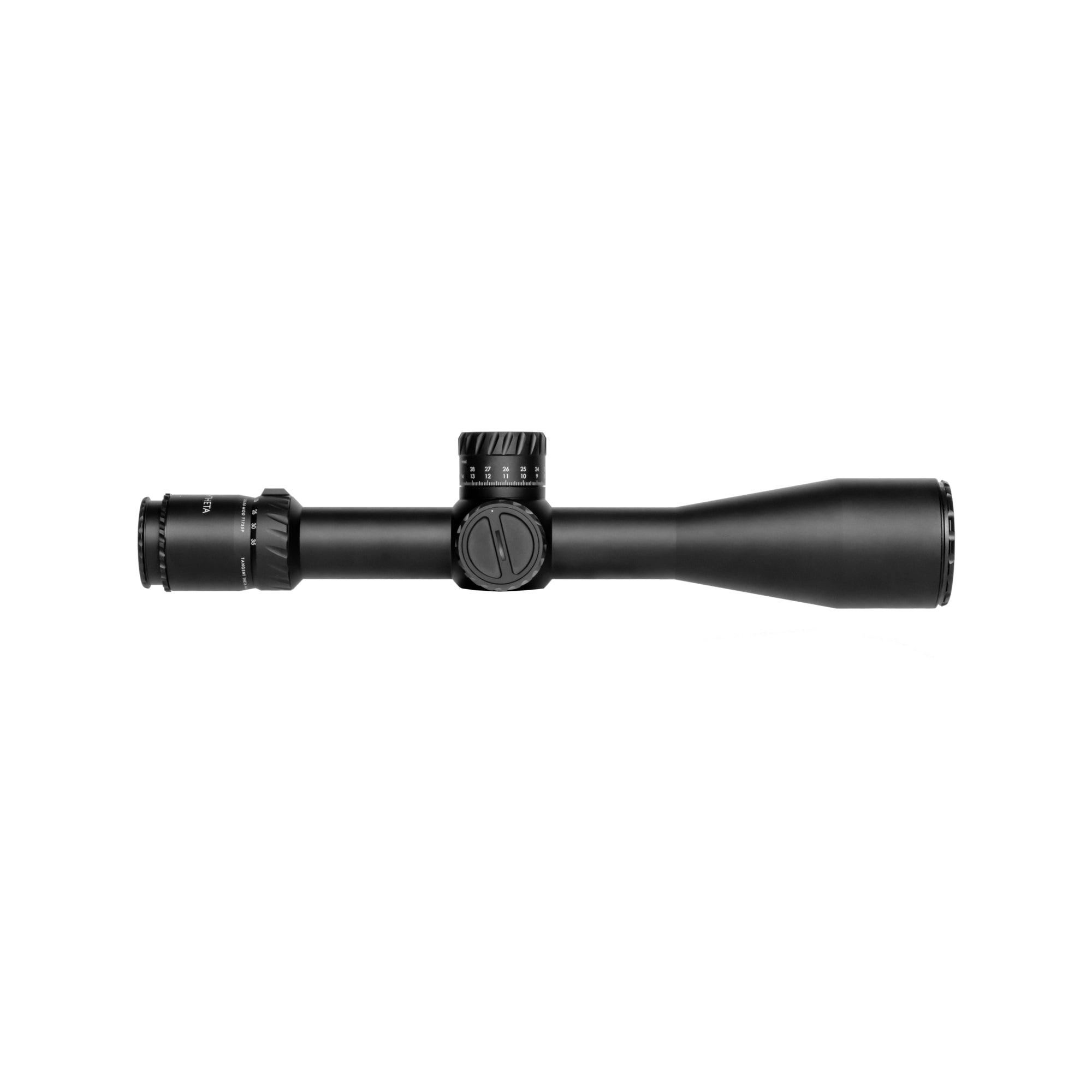

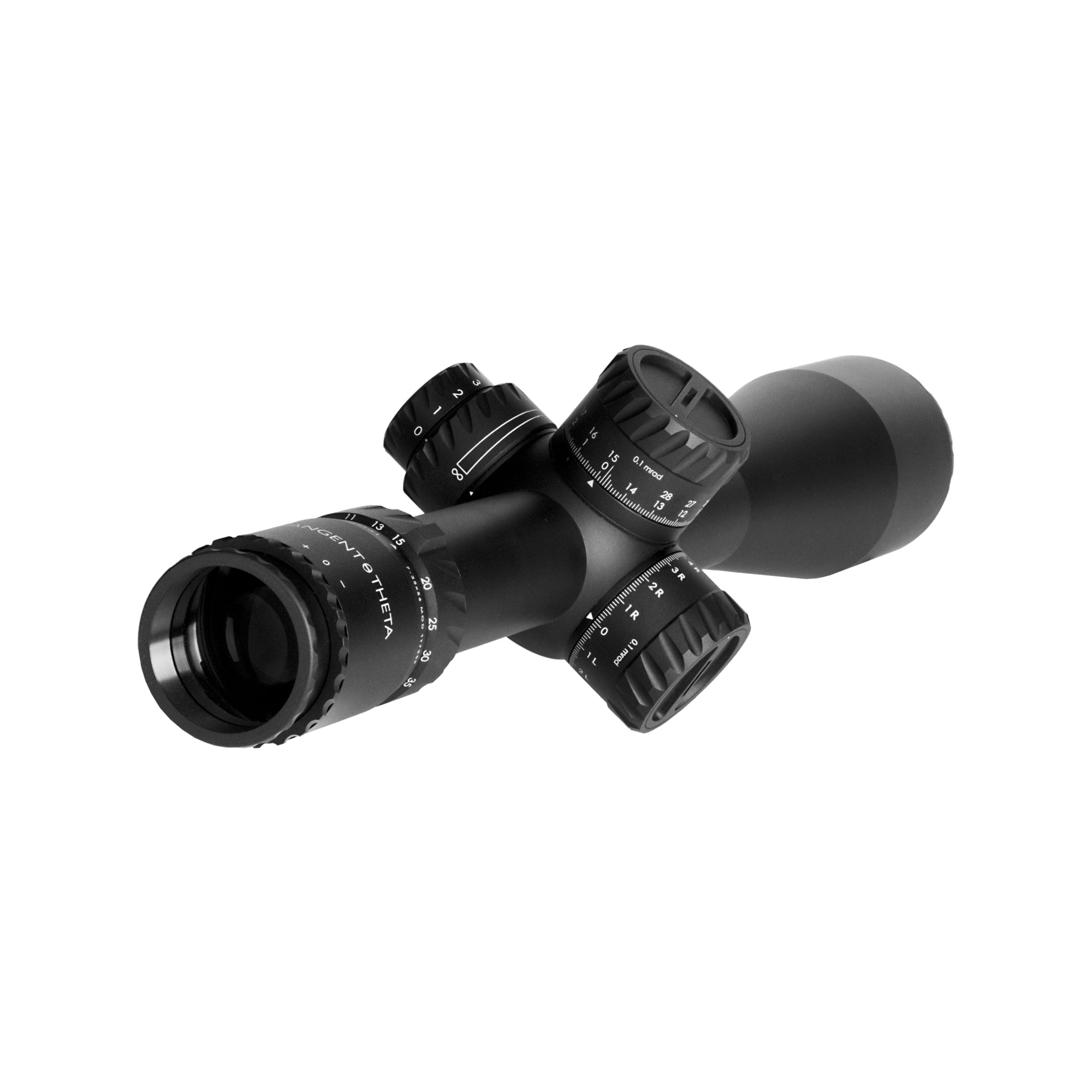

Tangent Theta TT735P 7-35x56mm Professional Riflescope Tremor3 Reticle
The all-new Tangent Theta TT735P, 7-35x56mm Rifle Telescope is the latest release in our line of extreme-range precision sighting instruments for professional marksmen.
This 35x rifle optic delivers better positive target identification at distance with increased magnification, features the ability to parallax down 10 meters and is 24mm shorter than our 25x models, all benefits to the Extreme Long Range and Precision Rifle Series marksman. The TT735P includes Tangent Theta’s legendary elevation and windage turrets that deliver precise tactile response and feature a truly TOOL-LESS RE-ZERO® procedure and lockable diopters.
Tangent Theta rifle telescopes are built in Canada and are specifically designed and function-tested for long lifecycles in the harshest of environmental conditions.
FEATURES :
- 56mm objective lens
- 36mm main tube
- Will focus down to 10 meters
- eleven reticle illumination settings
- side parallax adjustment
- TOOL-LESS RE-ZERO® feature (US Patent # 10,591,253)
- non-translating knobs with elevation zero-stop
- double-turn elevation with rev indicator
- 7-35x magnification range

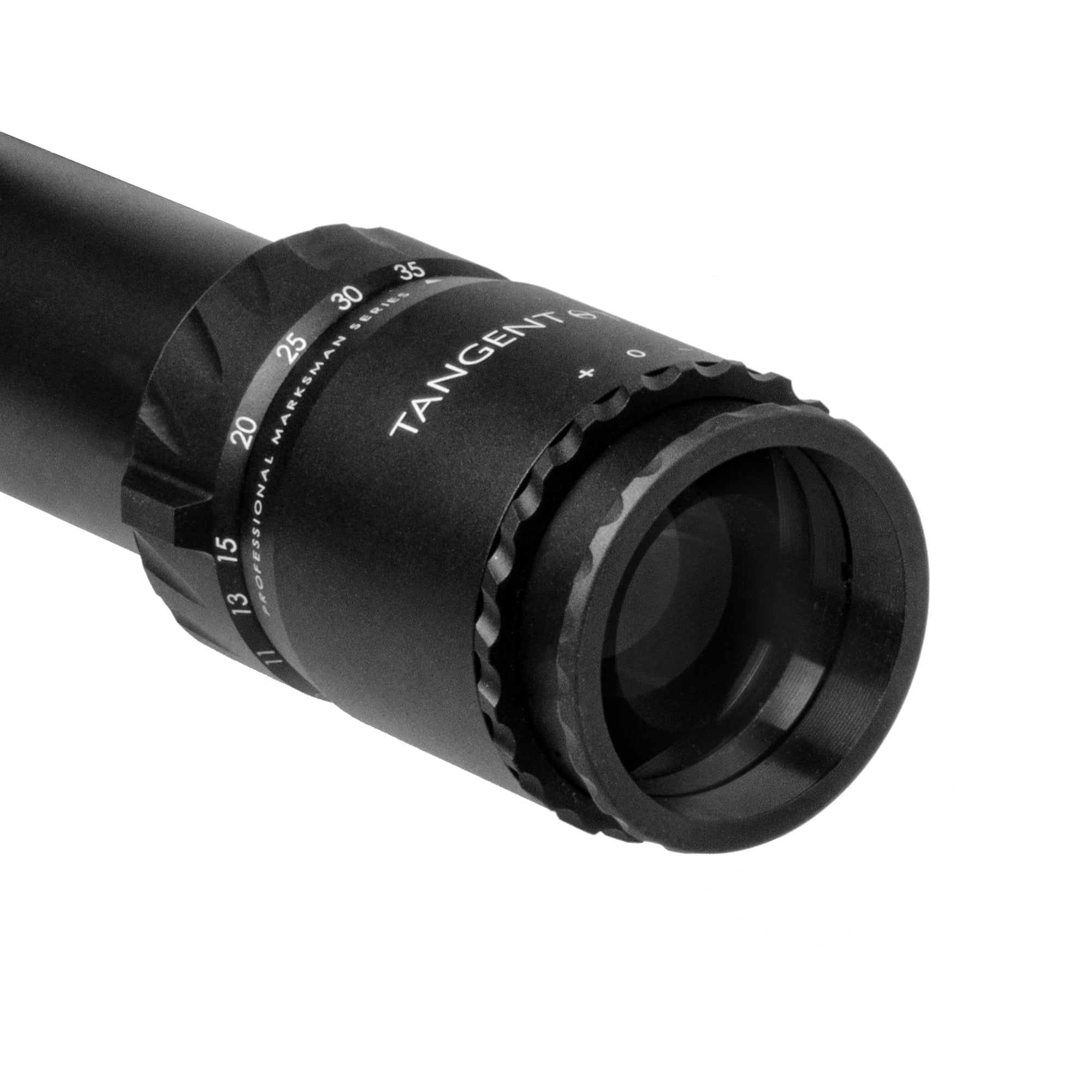

- lockable rapid adjusting diopter
Premium Glass and Large 56mm Objective Lens – Optimal light transmission and clarity

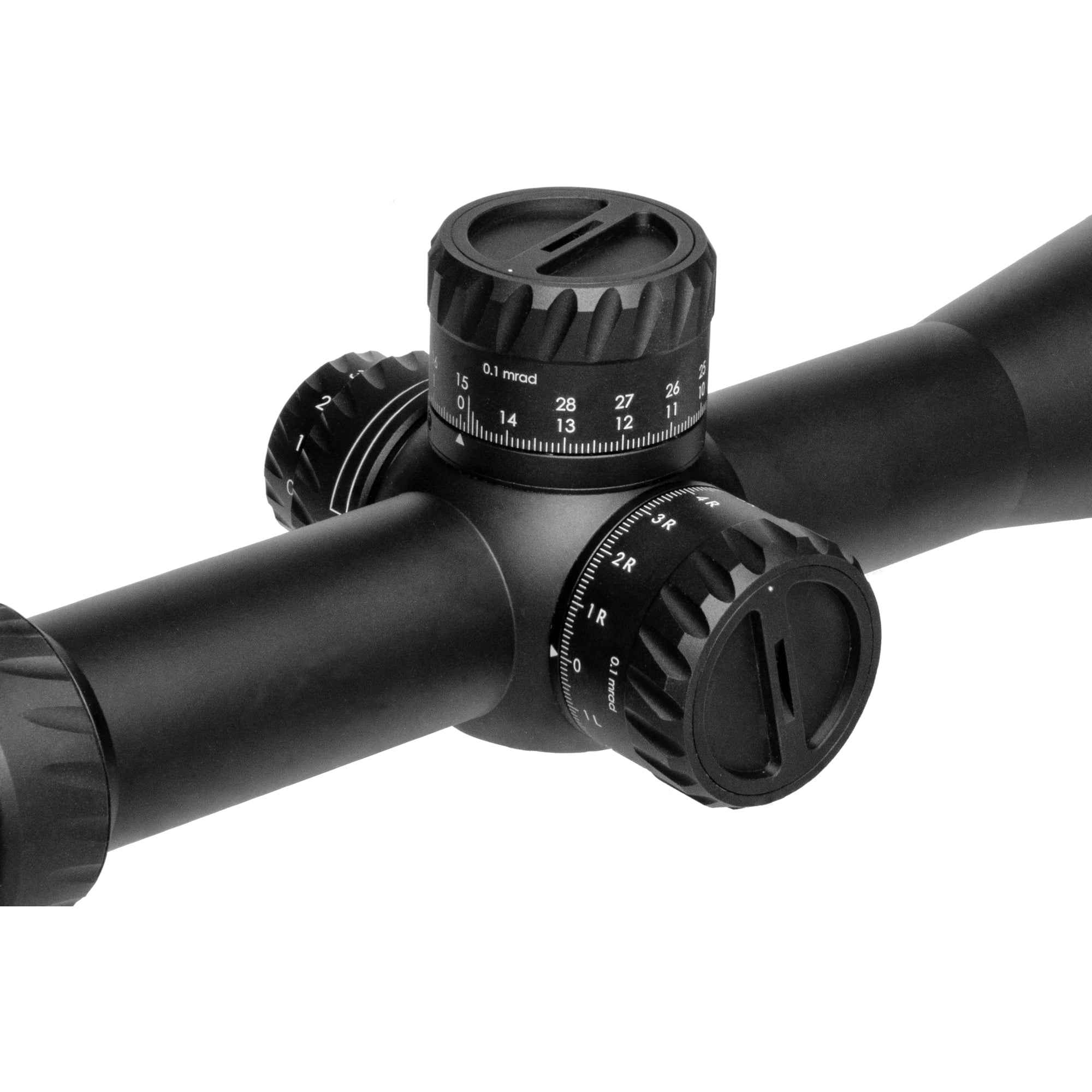

Non-Translating Turrets – Dual turn elevation turret with upper and lower adjustment scales. Simplifies the act of making adjustments in the field as well as the overall operation of the scope
Zero-Stop Function – Allows the user to quickly return to a known range zero and to be able to use that setting as a starting point to make further adjustments
Tool-Less Re-Zero Function – Allows the user to adjust the reading of the adjustments without changing the point of aim in the scope
Illumination – 11 brightness settings. Each setting features a tactile detent with additional detents between each setting. The illumination detectives between each setting, and a 6-hour automatic shutoff preserves battery life

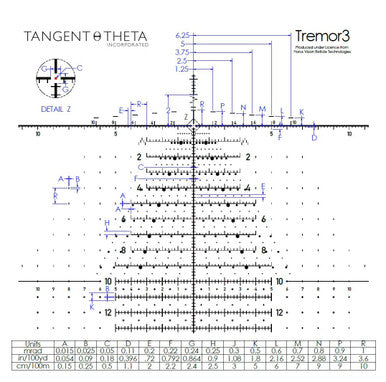

Tremor3 Reticle
- Precise center aiming dot
- Horus grid with 0.2 MRAD subtentions provides numerous precise aiming points for extreme precision
- Time of flight wind dots for quick and easy holds without a ballistic calculator
- Moving target holds indicate leads for various targets moving up to 10 mph
- Rapid range bars enable quick estimates of the range to targets of known size
SPECIFICATIONS :
| Magnification | 7x-35x |
| Length | 405mm |
| Width | 103mm |
| Height | 86mm |
| Weight | 1230g |
| Tube diameter | 36mm |
| Objective bell diameter | 65mm |
| Objective lens diameter | 56mm nominal |
| Eyepiece diameter | 48mm |
| Reticle options | Gen 3 XR Fine, JTAC, Tremor3 |
| Field of View @ 7x | 3.1 degrees (5.41m @ 100m) |
| Field of View @ 35x | 0.62 degrees (1.08m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 7x | 8mm |
| Exit pupil @ 35x | 1.6mm |
| Re-zero mechanism | TOOL-LESS RE-ZERO® (patent pending) |
| Elevation Total Range | 30 mrad |
| Windage Total Range | 14mrad |
| Elevation Working Range | 28 mrad |
| Windage Working Range | +/- 6 mrad |
| Adjustment resolution | 0.1 mrad |
| Parallax adjustment range | 10m to infinity |
| Crosshair illumination | LED, 11 settings |
| Battery type | DL2032 3v lithium |
| Exterior finish | Type II Anodized, matte |
| Waterproof | 4 hours @ 10 meters |
| Shockproof | 700g’s @ 10,000 cycles |
| Standard accessories | Tenebraex lens covers & ARD |
| Brand | Tangent Theta |
| SKU | 800106-0008 |
ABOUT TANGENT THETA
Professional Rifle Telescopes for Precision Marksmen
Tangent Theta is based in Halifax, Nova Scotia, Canada and was established in 2013 to design and build a series of rifle telescopes specifically for the requirements of professional marksmen.
Our company has assembled an extremely experienced rifle telescope development team consisting of optical designers, mechanical designers, engineers and international-class long-range marksmen. All have either worked for or consulted to the most prestigious names in the optical sighting systems industry.
Our goal is to design, develop and produce rifle telescopes that are beyond reproach in all aspects of design, utility, and service performance. Tangent Theta rifle telescopes are built in our own manufacturing facility in Halifax and are distributed internationally by Armament Technology Incorporated.
