Description

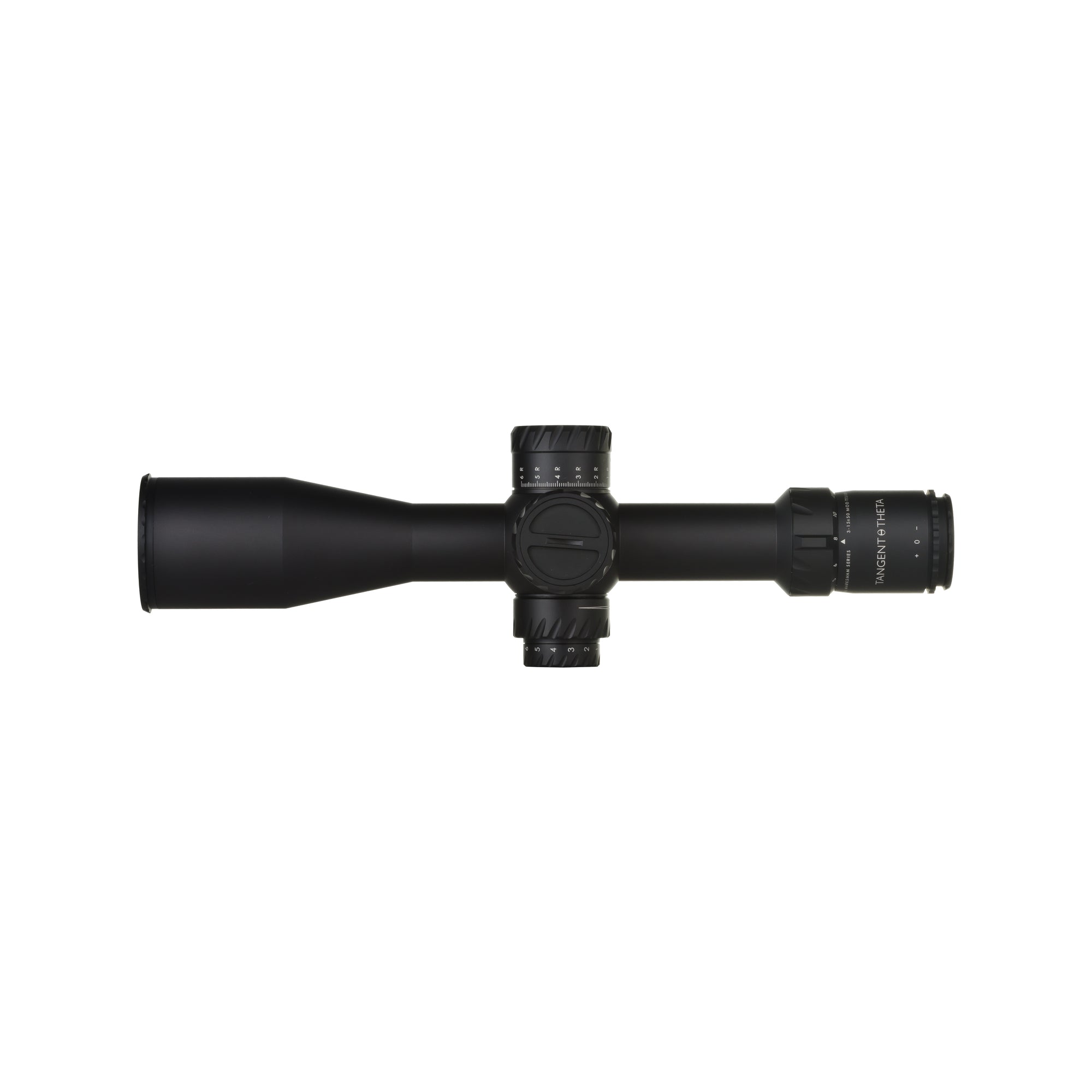

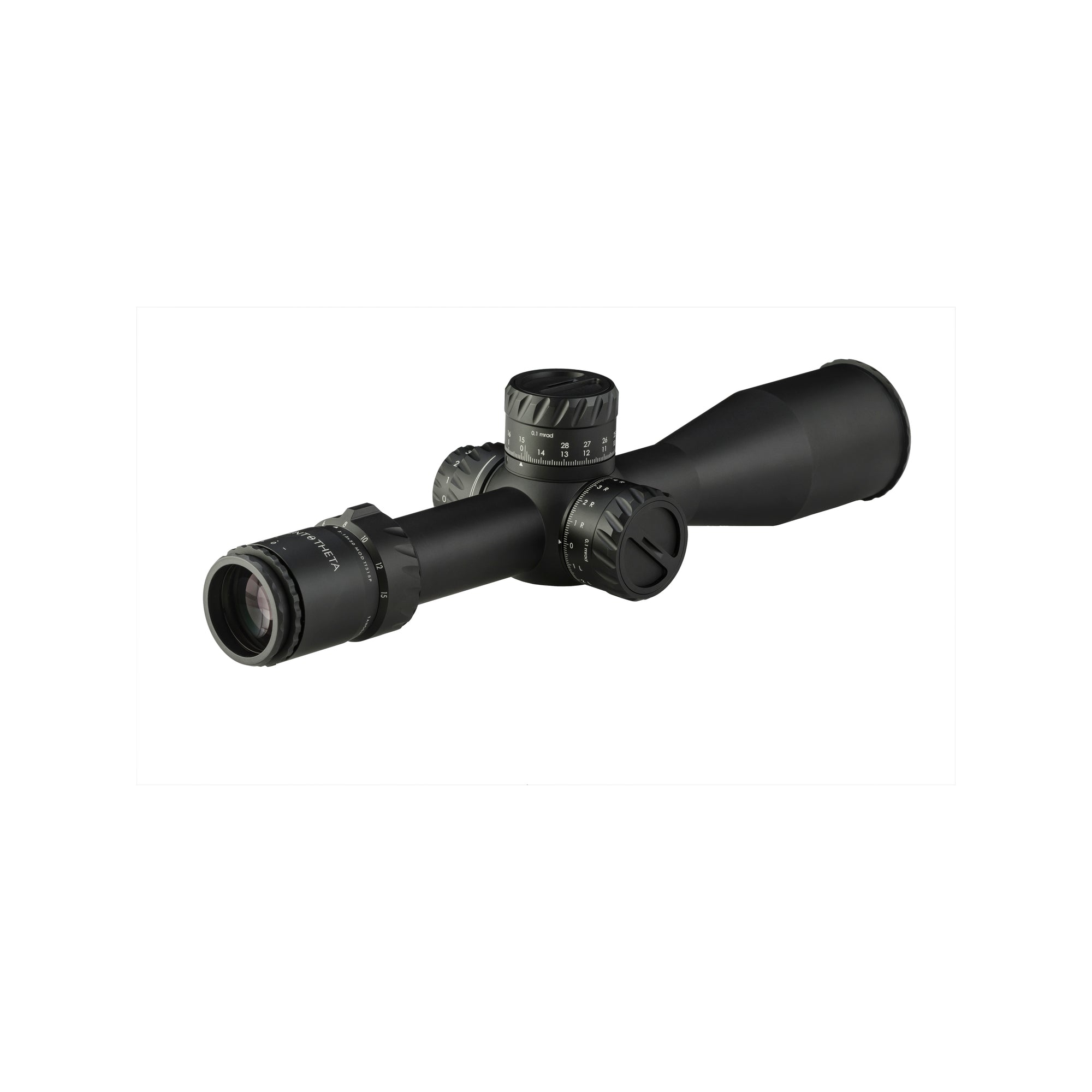

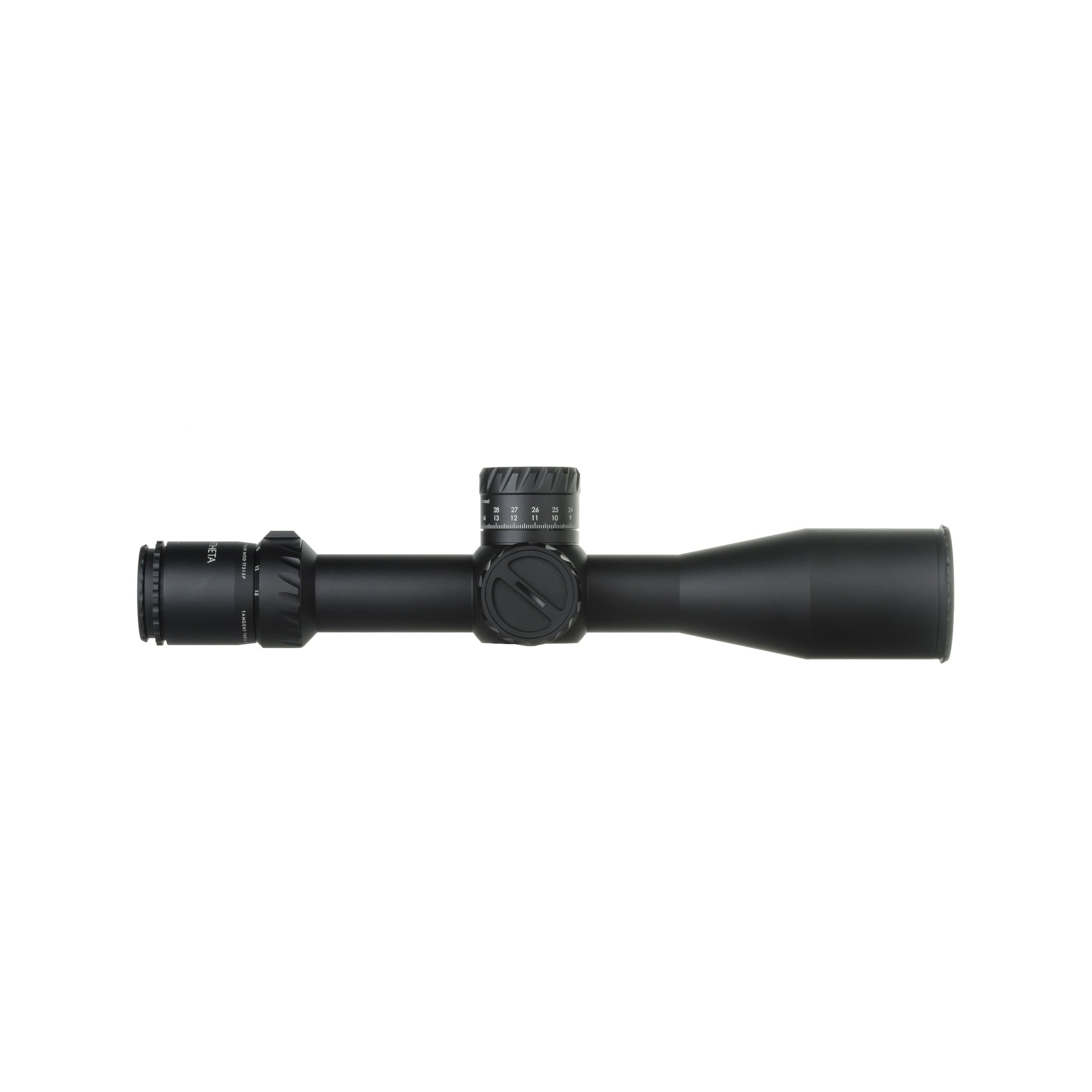

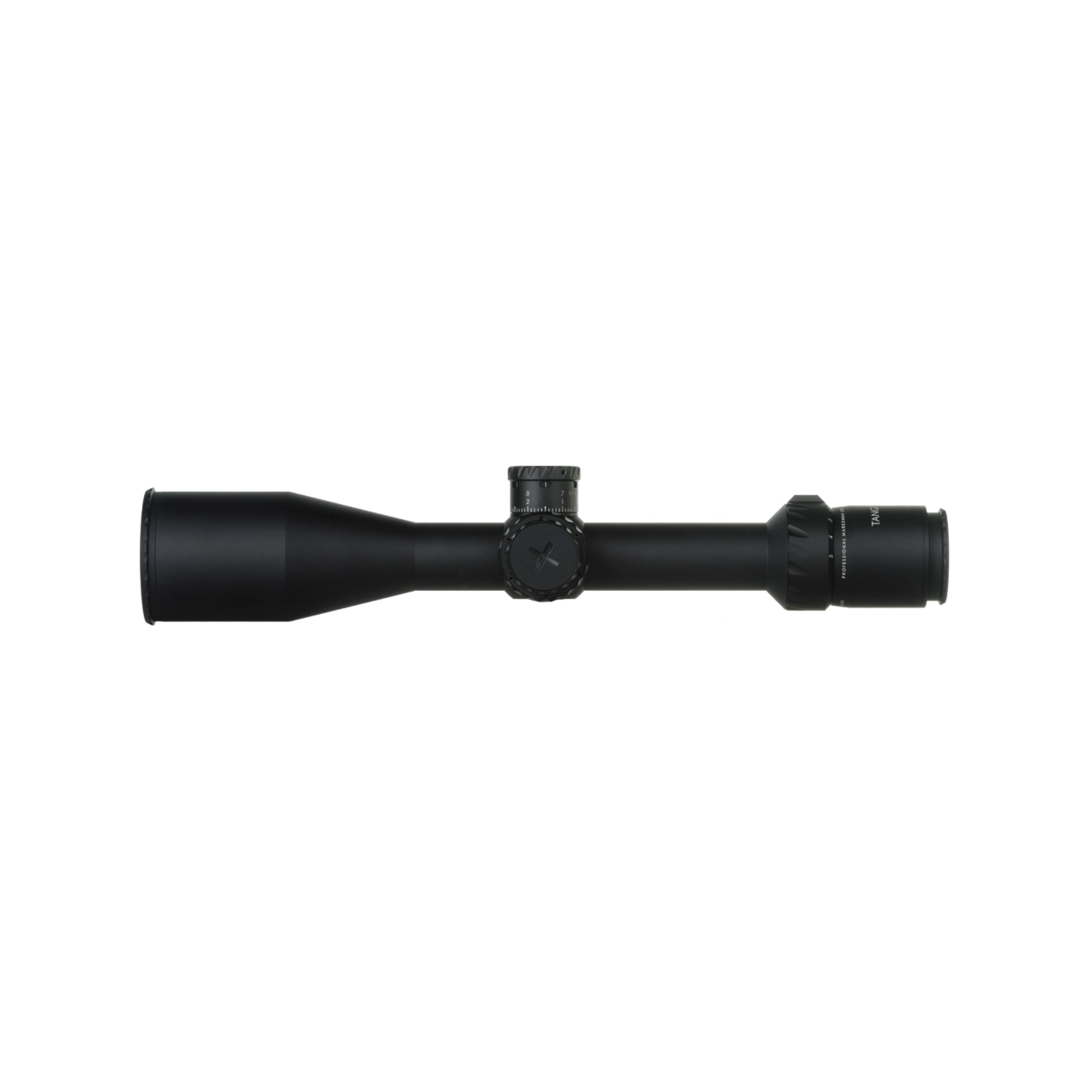

Tangent Theta TT315P 3-15x50mm Professional Riflescope Gen 2 XR Reticle
Tangent Theta 3-15x50mm model TT315P Rifle Telescope is a long-range precision sighting instrument for professional marksmen.
Designed for heavy field use, Tangent Theta’s industry-leading development team has used their extensive experience to optimize and refine it for unfailing ruggedness, mechanical precision and unsurpassed image quality. Elevation and windage mechanisms exhibit precise tactile response and feature a truly TOOL-LESS RE-ZERO® procedure.
Tangent Theta rifle telescopes are built in Canada and are specifically designed and function-tested for long lifecycles in the harshest of environmental conditions.
FEATURES :
- 50mm objective lens
- 34mm main tube
- eleven reticle illumination settings
- side parallax adjustment
- TOOL-LESS RE-ZERO® feature (US Patent # 10,591,253)
- non-translating knobs with elevation zero-stop
- double-turn elevation with revolution indicator
- 3-15x magnification range
- lockable rapid adjusting diopter
Premium Glass and Large 50mm Objective Lens – Optimal light transmission and clarity
Non-Translating Turrets – Dual turn elevation turret with upper and lower adjustment scales. Simplifies the act of making adjustments in the field as well as the overall operation of the scope
Zero-Stop Function – Allows the user to quickly return to a known range zero and to be able to use that setting as a starting point to make further adjustments
Tool-Less Re-Zero Function – Allows the user to adjust the reading of the adjustments without changing the point of aim in the scope
Illumination – 11 brightness settings. Each setting features a tactile detent with additional detents between each setting. The illumination detectives between each setting, and a 6-hour automatic shutoff preserves battery life
Gen 2XR Reticle
- Traditional crosshair design
- 0.025 MRAD vertical and horizontal crosshairs give an ultra fine aiming point
- Full and half MRAD subtentions for rapid ranging and holdovers
- Full and half MRAD wind holds below the horizonal allow for compensation at distance
- Minimal holdover data allows a user to easily spot fall of shot
SPECIFICATIONS :
| Magnification | 3x-15x |
| Length | 356mm |
| Width | 103mm |
| Height | 82mm |
| Weight | 1025g |
| Tube diameter | 34mm |
| Objective bell diameter | 57mm |
| Objective lens diameter | 50mm nominal |
| Eyepiece diameter | 45mm |
| Reticle options | Gen 2, Gen 2XR, MoA, Gen 3XR |
| Field of View @ 3x | 7.3 degrees (12.8m @ 100m) |
| Field of View @ 15x | 1.6 degrees (2.8m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 3x | 11.5mm |
| Exit pupil @ 15x | 3.5mm |
| Re-zero mechanism | TOOL-LESS RE-ZERO® (patent pending) |
| Total Adjustment Range | |
| Elevation | 34 mrad (117 MoA) |
| Windage | +/- 8 mrad (+/- 27 MoA) |
| Working Adjustment Range | |
| Elevation | 28 mrad /96 MoA |
| Windage | +/- 6 mrad (+/- 20.5 MoA) |
| Adjustment resolution | 0.1 mrad or 1/4 MoA |
| Parallax adjustment range | 50m to infinity |
| Crosshair illumination | LED, 11 settings |
| Battery type | DL2032 3v lithium |
| Exterior finish | Type II Anodized, matte |
| Environmental | |
| Waterproof: | 4 hours @ 10 meters |
| Shockproof: | 700g?s @ 10,000 cycles |
| Standard accessories | Tenebraex lens covers & ARD |
| Brand | Tangent Theta |
| Model | 3-15x50mm TT315P |
| Reticle | Gen 2 XR Reticle |
| SKU | 800101-0001 |
ABOUT TANGENT THETA
Professional Rifle Telescopes for Precision Marksmen
Tangent Theta is based in Halifax, Nova Scotia, Canada and was established in 2013 to design and build a series of rifle telescopes specifically for the requirements of professional marksmen.
Our company has assembled an extremely experienced rifle telescope development team consisting of optical designers, mechanical designers, engineers and international-class long-range marksmen. All have either worked for or consulted to the most prestigious names in the optical sighting systems industry.
Our goal is to design, develop and produce rifle telescopes that are beyond reproach in all aspects of design, utility, and service performance. Tangent Theta rifle telescopes are built in our own manufacturing facility in Halifax and are distributed internationally by Armament Technology Incorporated.
