Description

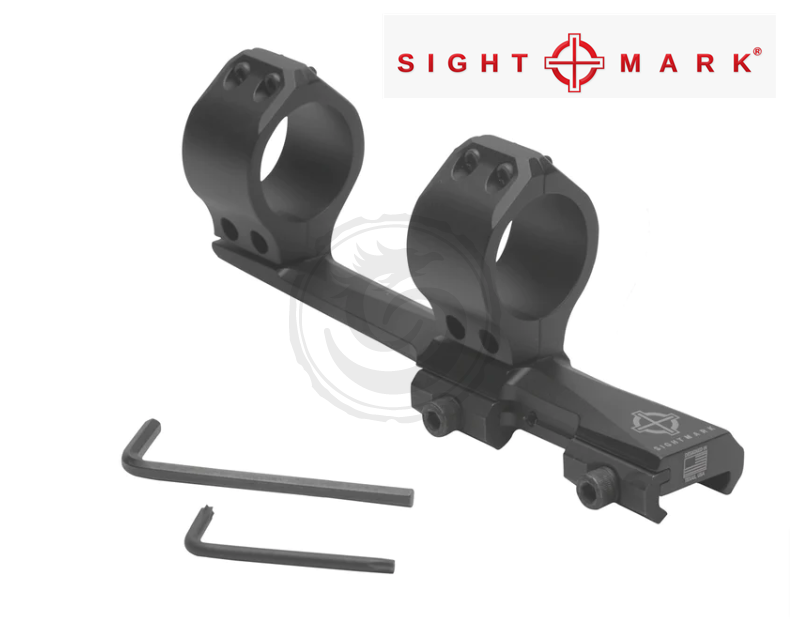

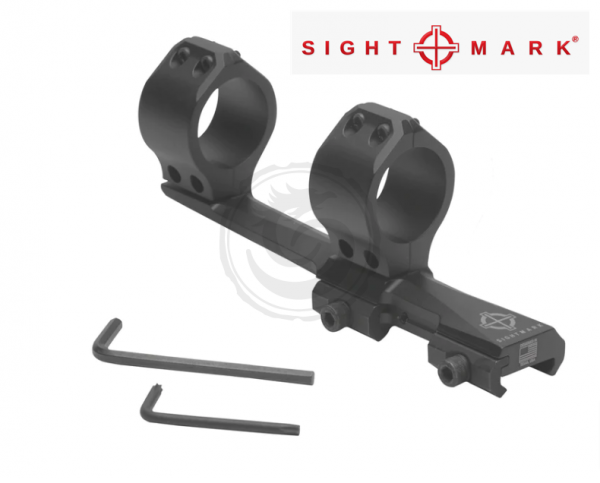

Sightmark Tactical 30mm/1in Fixed Cantilever Mount – SM34019
The Sightmark Tactical 30mm Fixed Cantilever Mount is a fixed mounted riflescope base compatible with 30mm scope tubes. This mount features a two-inch forward offset allowing the use of riflescopes requiring a greater eye relief and more comfortable cheek placement on AR-style rifles. The 30mm fixed mount is constructed of aircraft-grade 6061-T6 aluminum and finished in a matte black, non-reflective coating. Cantilever mounts make transferring your optic easy. This mount is perfect for installing and removing an optic from your firearm without losing zero.
Features
Included in Package
- 30mm Fixed Cantilever Mount
- Hex Key
Product Downloads
Features
- 6061-T6 aluminum body
- Fits Picatinny rails
- Matte black, non-reflective finish
- Fixed
- 30mm ring
- Easier transferring from firearm to firearm
- 2 inch forward offset
- Locking quick detach mount design
- Fits 30mm riflescope tubes
| Mount Type | Picatinny |
|---|---|
| Diameter, Ring | 30mm |
| Material | Aluminum 6061-T6 |
| Centerline Height | 1.5 / 38.1 in / mm |
| Torque Spec for Mount Hex Nut, in-lbs | 40-50 |
| Torque spec for torx scope rings (in-lbs) | 22-25 |
| Length | 5.98 / 152 in / mm or 6.89 / 175 in / mm |
| Width | 1.29 / 33 in / mm or 1.81 / 46 in / mm |
| Height | 2.48 / 63 in / mm |
| Weight, oz | 5.8 oz or 7.9 oz |
