Description

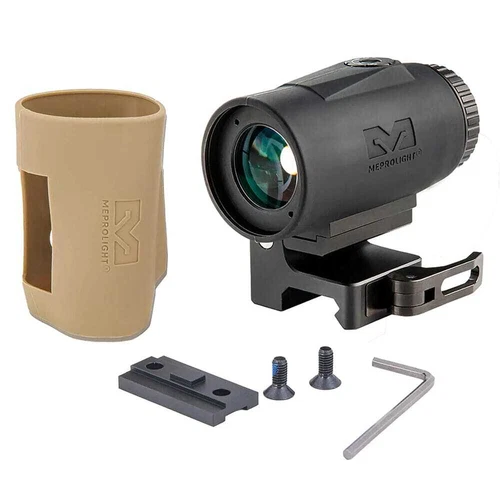

Meprolight MMX4 4X Micro Magnifier
The Mepro MMX4 and micro magnifiers are compact, lightweight magnifiers that will extend your effective range of your red dot or 1x reflex sight. Weighing in at 6.9 oz. respectively they reduce the footprint, saving rail space and weight on your firearm.
Elevation and windage dials provide precise FOV line of sight alignment. A wide FOV enables rapid target acquisition with both eyes open which is ideal where agility, and speed are of the
utmost importance.
The Mepro MMX4 and micro magnifiers attach to any MIL-STD-1913 rail directly behind your optic. When not in use the Mepro MMX4 can be “flipped” out of
the way by depressing a pushbutton.
 |
 |
 |
| Two Rubber Covers | Side-Flip | No Batteries Needed |
 |
 |
|
| High Transparency Optic | Highly Durable Structure |
PROVEN ADVANTAGES
Increases the effective range of red dot sightsEnables rapid target identificationWorks with both 1.5″ and 1.93″ height over bore optics (riser supplied)No zeroing requiredIntegrated side flip adapter with Picatinny adapterTwo protective rubber covers included |
 |
 |
 |
Specifications:
| Magnification | 4X |
| Objective diameter | 24 mm |
| Exit Pupil | 6 mm |
| Length | 3.2″ (82 mm) |
| Center Height | 1.58″ (40.3 mm) |
| Center Height with Riser | 1.75″ (44.7mm) |
| Net Weight with mount | 10.23oz (290 g) |
| Eye Relief | 2.65″ (67.5 mm) |
| Angular Field of View | 5.5° |
| Diopter adjustment | +/- 2 |
| W&E Travel Range | ≥ 60 MOA |
| Storage Temperature | -22˚F to 140˚F (-30˚ to +60˚ C) |
| Working Temperature | -4˚F to 122˚F (-20˚ to +50˚ C) |
| Submersion | IPX7 |
