Description
EOTech HHS STC Holographic Sight with 3x Magnifier
EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

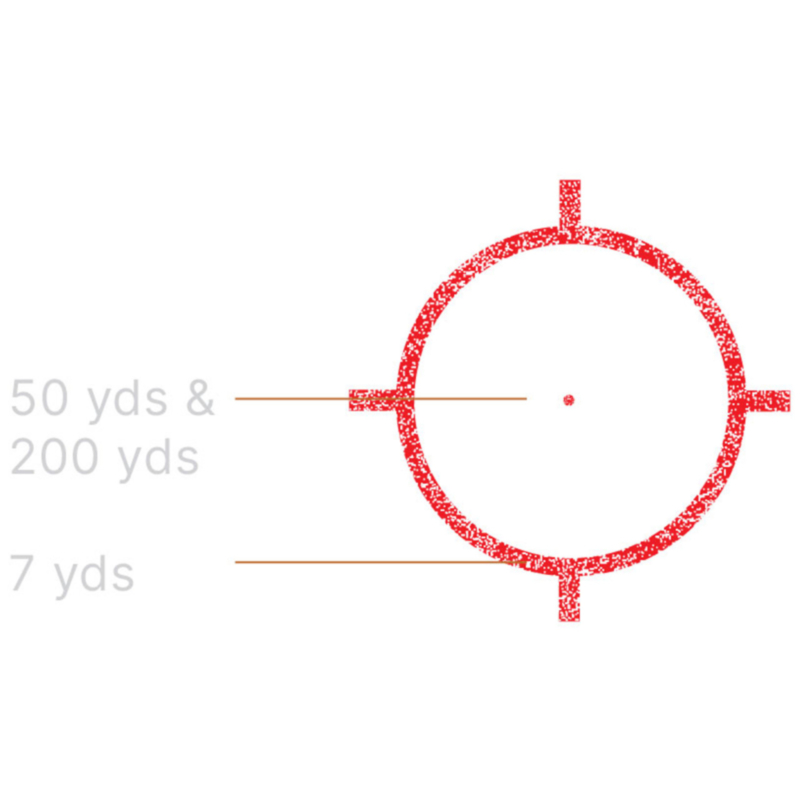

EOTECH One Dot Reticle
- Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
Range Estimation with Unmagnified HWS
- The standard ring found in most reticles equates to approximately 68″ (5’8″) at 100 yards.
Brightness Options
- The EXPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.
 |
 |
 |
 |
 |
 |
SPECS
| L X W X H | 8.1″ × 2.75″ × 3.75″ (205.7 × 69.9 × 76.2 mm) |
| Weight | 25oz (708.7 g) |
| Water Resistant | 33ft. (10 m) depth |
| Mount | 1″ Weaver or MIL-STD-1913 rail |
| Windage & Elevation Adjustment | 0.5 MOA per click |
| Brightness | 20 daylight settings 10 additional settings for Gen I through III+ night vision devices |
| Power Source | 1 x CR123 battery |
| Battery Life | 1,000 continuous hours at nominal setting 12 at room temperature |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Fixed Magnification | 3X |
| Eye Relief | 2.2″ (55.9 mm) |
| Field-of-View w/ Magnifier | 7.3° |
| Sealing | Fog resistant internal optics |
| Country of Origin | HWS Made in the USA Magnifier Assembled in USA Gorilla Mounts Made in USA |
