6-36X56 CONFIGURATION

Its larger 56mm ED Prime objective lens size, fully multi-coated elements and new reticle element coating yield best-in-class light transmission in a first focal plan platform built for maximum precision in all conditions.

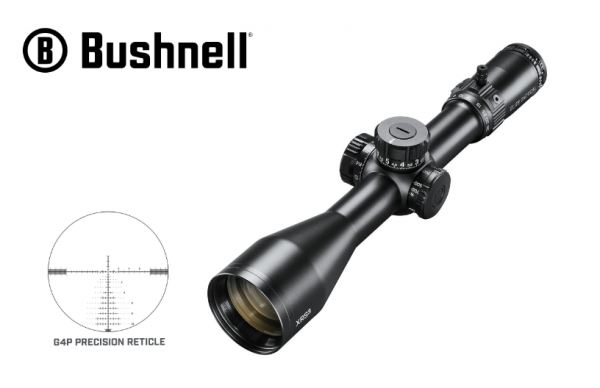

G4P PRECISION RETICLE

Developed in conjunction with G.A. Precision, the all-new G4P reticle gives you a floating-dot point-of-aim with clearer sight picture for fast acquisition and dead-on accuracy. Includes floating holdover dots, bold mover holds, refined line widths and quick-acquisition bars for low-magnification settings.

MULTI-POSITION THROWHAMMER™

Adjust your magnification lever to a right-handed or neutral position to fit your shooting style and keep it out of the way when manipulating the rifle. The lever is removable and a spare filler-screw is included to protext the exposed tapped hole.

BOLD TURRET MARKINGS

The large, bold markings are easier to see when under pressure or in darker environments to save valuable time when milliseconds and milliradians matter.

CLEAN SHEET DESIGN

The XRS3 is an all-new design from the ground up. Through the new optical design, glass, and lens coating specifications we increased light transmission considerably over the XRS II. The big 56mm ED Prime objective lens produces amazing optical clarity and resolution while giving the XRS3 a much improved ‘eyebox’ over the previous generation XRS II. The more forgiving eyebox allows you to get on target faster rather than spending precious time getting into the scope.

REVLIMITER ZERO STOP

Elite Tactical scopes are known for having a rock solid zero stop that takes only seconds to set. The XRS3 continues this tradition and has our RevLimiter zero stop for quick returns to zero and hassle-free setting.

• A clean-sheet all-new design, the XRS3 is IP67 Rated for Water & Dust Protection – The billet-aluminum-machined 34mm tube is built like a tank, and argon-purged to reduce fogging.
• Excellent Tracking and Reliability – Windage and elevation stay true to wherever you set them. Turrets engineered for clean-dialing, positive tactile clicks with dead-on repeatability.
• RevLimiter™ Zero Stop – It’s simple and fast to set and delivers a rock-solid stop to turret travel, so you can have confidence in your zero every time.
• Our Most Advanced Optical System – The combination of the ED Prime objective, full multi-coated elements, EXO Barrier Protection and a new reticle element coating come together to increase light transmission nearly 2% to give you optical performance and precision that delivers without fail.
• ED Prime Glass – Extra-low Dispersion glass cuts down color fringing and allows for the sharpest imaging, so you can see the difference between left edge hit or a center punch.
• Best Eyebox in the business – The XRS3’s eyebox was improved beyond the XRS II’s through 30x through the use of the larger 56mm objective lens. At 36x, the XRS3’s eyebox is roughly the same as the XRS II at only 30x.
• The included sunshade has both external and internal M62x0.6 threads so that you may attach third-party accessories such as ARDs, filter holders, threaded scope caps, etc., onto the front of the installed sunshade.

• SPECS

  Item ID (SKU)	ETXRS3G4
  Collection	Elite Tactical
  Model Name	XRS3
  Color	Black
  Magnification x Objective Lens	6-36x56mm
  Eye Relief (in./mm)	4.0 in. / 101.6 mm
  Field of View (ft.@100yards)	18 ft. @ 6x – 3 ft. @ 36X
  Illuminated	No
  Focal Plane	First
  Reticle	G4P
  Parallax Adjustment	Side Focus, 50 yds. to infinity
  Length (in./mm)	14.8 in. / 376mm
  Tube Diameter	34 mm
  Weight (oz./g)	38.9 oz. / 1102 g
  Water Resistant	Yes, IP67 Waterproof/Dustproof
  Fog Proof	Yes, Argon gas purged
  Magnification Ring	Grooved w/3-Position Throw Hammer
  Diopter	Locking
  Elevation Adjustment	29 MIL
  Windage Adjustment	15 MIL
  Travel Per Rotation	10 MIL
  Elevation Turret	Exposed, Non-Locking
  Windage Turret	Exposed, Locking
  Zero Stop	Yes, RevLimiter™
  Lens Coatings	Fully Multi-Coated
  Enhanced Coatings	Ultrawide Band
  Protective Lens Coating	EXO Barrier
  ED Prime Glass	Yes
  Country of Origin	Japan
  Sunshade	Included
  Scope Caps	Not Included
