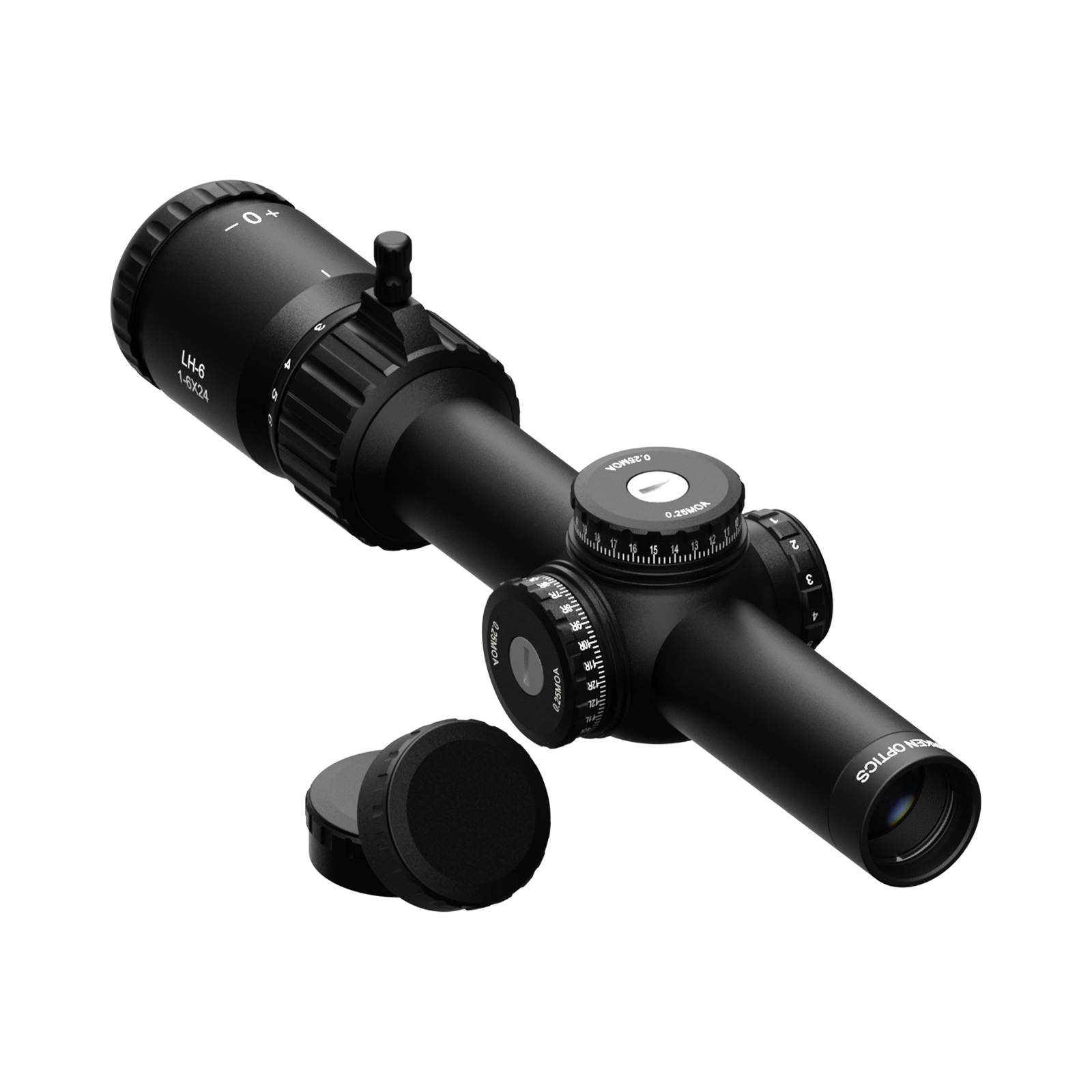

Arken Optics LH-6 1-6×24 SFP LPVO Bundle Illuminated KLBOX – 30mm Tube
Lightweight and versatile, the LH-6 1-6×24 SFP is built for fast target acquisition up close and confident shooting at mid-range. From competition and target shooting to hunting and general-purpose AR-15 setups, it is ready for a wide range of shooting scenarios.
Premium Japanese HD glass with Super Bright Fully Multi-Coated Optics delivers 90%+ light transmission, providing a bright, high-contrast image from dawn to dusk. With improved clarity in challenging light, you can spot game earlier, identify details faster, and make the most of every shooting opportunity.
Featuring a true 1x magnification with an ultra-wide field of view (133.5 ft @100 yd) and generous 3.7 in eye relief, the LH-6 provides a forgiving eyebox for rapid, close-range target acquisition. At 6x (21.2 ft @100 yd), it adds the precision and reach needed for mid-range shooting.

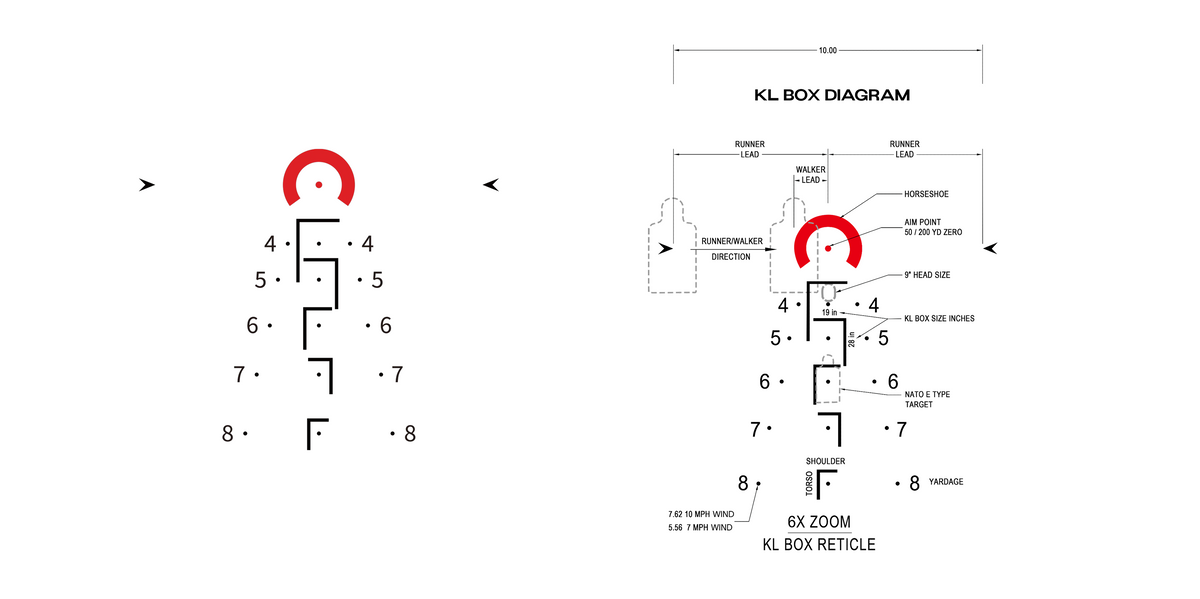

The KLBOX BDC is an SFP reticle that maintains a consistent appearance throughout the 1–6x magnification range, with an illuminated center for fast target acquisition at 1x. Designed for common 5.56 and 7.62 cartridges, its BDC holdovers are calibrated for 6x, with integrated wind and moving-target hold points for fast, confident shooting.
Product Features

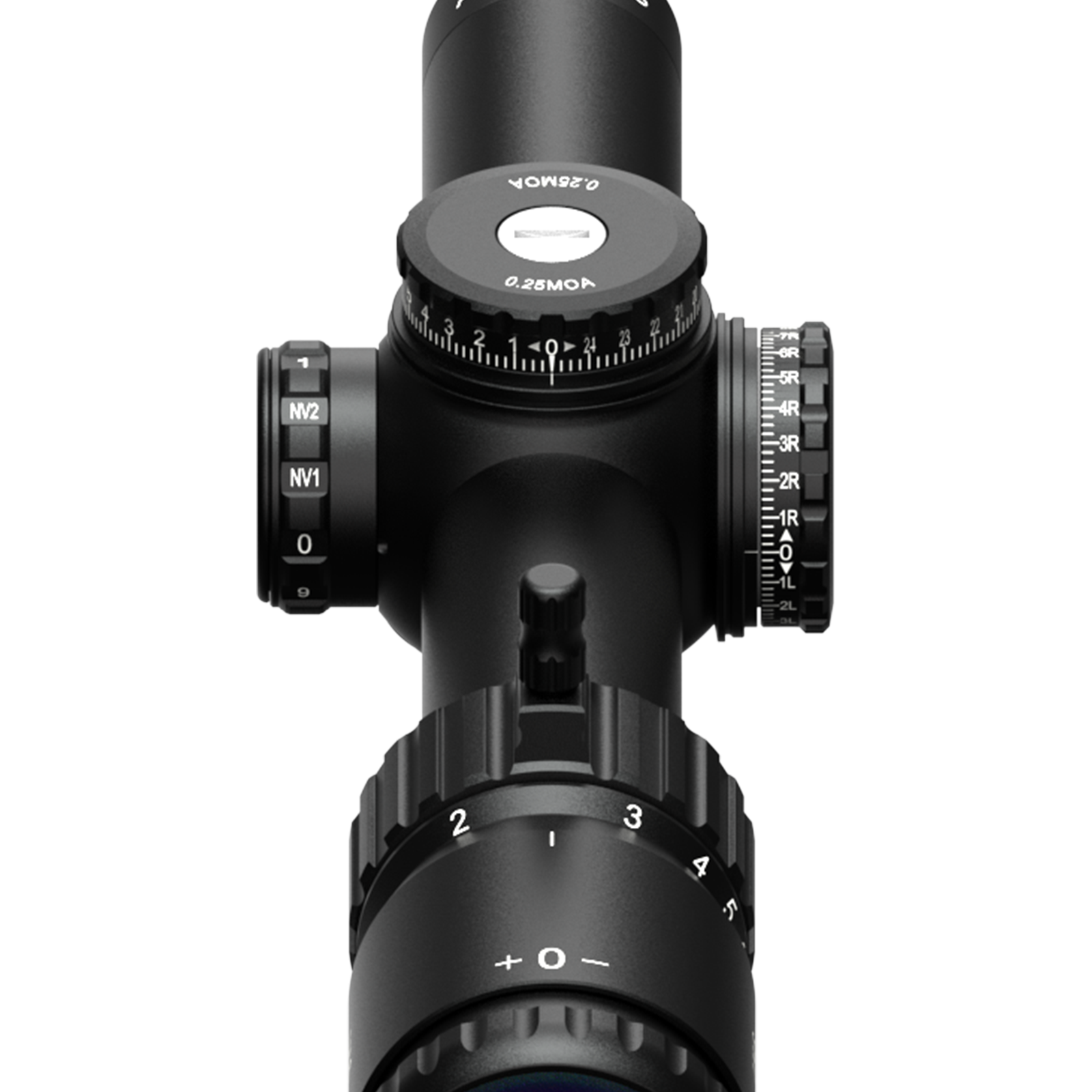

Capped Turret: Protective, low-profile caps that prevent accidental adjustments during rugged field use.
HD Glass: Ultra-clear glass that delivers exceptional brightness in low-light conditions.
Streamlined Design: Specialized low-profile construction engineered to reduce snags and weight while ensuring smooth, intuitive handling in the field.
Quick Zoom Adjustment: Adds leverage for lightning-fast, precise magnification changes while maintaining your position.
| Specification | Details |
|---|---|
| Magnification | 1-6x |
| Objective Diameter | 24mm |
| Eye Relief | 3.74 in |
| Field of View | 133.5-21.2 ft @100 yds |
| Tube Size | 30mm |
| Turret Adjustment | 0.1 MIL / 0.25 MOA |
| Reticle Position | SFP (Second Focal Plane) |
| Reticle Details | BDC (Bullet Drop Compensator) – KLBOX |
| KLBOX | Known Length Box |
| Elevation Adjustment Range | 180 listed MOA |
| Windage Adjustment Range | 180 listed MOA |
| Illuminated Reticle | Red |
| Turret Rotation | CCW (Counter Clockwise) |
| Throw Lever | Integrated / Removable |
| Weight | 20.6 oz |
| Color | Matte Black |
| Battery (Not Included) | CR2032 |
| Flip-Its Included | Yes |
| Sunshade Included | No |
 |
 |
 |
 |
 |
 |
